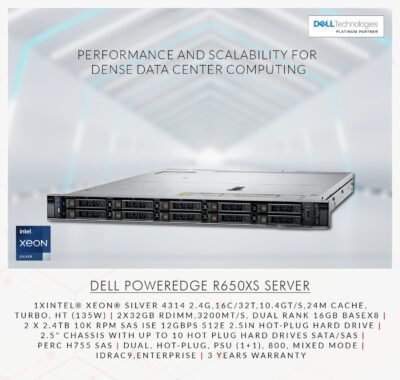

Dell EMC PowerEdge R650xs Rack Server


Dell EMC PowerEdge R650xs Rack Server

₨ 699,000.00

Processor Up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores
Memory • 16 DDR4 DIMM slots,
supports RDIMM 1 TB max,
speeds up to 3200 MT/s,
• Supports registered ECC DDR4 DIMMs only
Storage controllers • Internal controllers: PERC H345,
PERC H355,
PERC H745,
PERC H755,
PERC H755N,
HBA355i,
S150,
• Internal Boot: Internal Dual SD Module,
Boot Optimized Storage Subsystem (BOSSS1): HWRAID 2 x M.2 SSDs,
USB,
• External PERC (RAID): PERC H840,
HBA355e
Front bays • 0 drive bay,
• Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB,
• Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB,
• Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 76.8 TB
Rear bays • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB
Power Supplies • 600W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant,
• 700W Titanium Mixed Mode (200-240Vac or 240Vdc) hot swap redundant,
• 800W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant,
• 1100W Titanium Mixed Mode (100-240Vac or 240Vdc) hot swap redundant,
• 1400W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant,
• 1100W -48Vdc hot swap redundant (CAUTION: only works with -48Vdc to -60Vdc power input),
• 1800W Titanium Mixed Mode (200-240Vac or 240Vdc) hot swap redundant
Cooling options Air cooling
Fans • Standard (STD) fans,
High performance SLVR fans or High performance GOLD fans,
• Up to seven cabled fans
Dimensions • Height – 42.8 mm (1.68 inches),
• Width – 482 mm (18.97 inches),
• Depth – 734.95 mm (28.92 inches) – without bezel,
748.79 mm (29.47 inches) – with bezel
Form Factor 1U rack server
Embedded Management • iDRAC9,
• iDRAC Service Module,
• iDRAC Direct,
• Quick Sync 2 wireless module
Bezel Optional LCD bezel or security bezel
OpenManage Software • Open Manage Enterprise,
• Open Manage Power Manager plugin,
• Open Manage Support Assist plugin,
• Open Manage Update Manager plugin
Mobility Open Manage Mobile
Integrations and Connections • BMC Truesight,
• Microsoft System Center,
• OpenManage Integrations,
• Red Hat Ansible Modules,
• VMware vCenter and vRealize Operations Manager,
• IBM Tivoli Netcool/OMNIbus,
• IBM Tivoli Network Manager IP Edition,
• Micro Focus Operations Manager,
• OpenManage Connections,
• Nagios Core,
• Nagios XI
Security • Cryptographically signed firmware,
• Secure Boot,
• Secure Erase,
• Silicon Root of Trust,
• System Lockdown (requires iDRAC9 Enterprise or Datacenter),
• TPM 1.2/2.0 FIPS,
CC-TCG certified,
TPM 2.0 China NationZ
Embedded NIC 2 x 1 GbE LOM
Network Options 1 x OCP 3.0
GPU Options Not supported
Front Ports • 1 x iDRAC Direct (Micro-AB USB) port,
• 1 x USB 2.0,
• 1 x VGA
Rear Ports • 1 x USB 2.0,
• 1 x Serial (optional),
• 1 x USB 3.0,
• 2 x Ethernet,
• 1 x VGA
Internal Ports • 1 x USB 3.0 (optional)
PCIe Up to 3 x PCIe Gen4 slots
Operating System and Hypervisors • Canonical Ubuntu Server LTS,
• Citrix Hypervisor,
• Microsoft Windows Server with Hyper-V,
• Red Hat Enterprise Linux,
• SUSE Linux Enterprise Server,
• VMware ESXi
OEM-ready version available From bezel to BIOS to packaging,
your servers can look and feel as if they were designed and built by you.
Categories: , Tags: , , , , , , , , , , , , , , , , , , ,


Description

Processor: Dell EMC PowerEdge R650xs Rack Server
This server can use up to two powerful Intel Xeon processors. Each processor can have up to 32 cores, making it super fast for handling lots of tasks at once.

Memory:
It has 16 slots for memory (RAM), which can hold up to 1 TB (that’s a lot!) of registered ECC DDR4 RAM. The RAM can work at speeds up to 3200 MT/s, which helps programs run smoothly.

Storage Options:Dell EMC PowerEdge R650xs Rack Server

  • Front Bays: You can add many hard drives or SSDs. There are options for up to 64 TB with 3.5-inch drives and even more with smaller 2.5-inch drives (up to 76.8 TB).
  • Rear Bays: You can add up to 2 more drives here, for an extra 15.36 TB.

Power Supply:Dell EMC PowerEdge R650xs Rack Server
The Dell EMC PowerEdge R650xs Rack Server uses hot-swappable power supplies, meaning you can replace them without turning off the server. You have options from 600W to 1800W, ensuring it gets the power it needs.

Cooling:
Air cooling keeps everything cool with standard or high-performance fans. It can use up to seven fans for better airflow.

Size and Form Factor:Dell EMC PowerEdge R650xs Rack Server
This Dell EMC PowerEdge R650xs Rack  server is a 1U rack server, which means it’s designed to fit in a standard server rack. It measures about 42.8 mm tall, 482 mm wide, and 734.95 mm deep.

Management: Dell EMC PowerEdge R650xs Rack Server
It features smart management tools like iDRAC9 for monitoring and managing the server remotely.

Security:
This server has strong security features, including signed firmware and secure boot options, ensuring your data stays safe.

Network Connections:
It includes built-in Ethernet ports for connecting to the internet or other devices.

Operating Systems:
You can run various operating systems on it, including Ubuntu, Windows Server, and VMware, making it versatile for different tasks.

Customization:
You can customize everything from the look of the server to its software, making it unique to your needs.

This server is designed to be powerful, flexible, and secure, making it perfect for businesses or organizations needing reliable computing!
